MultiStandard Advanced Monitoring Probe

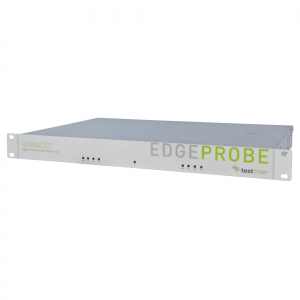

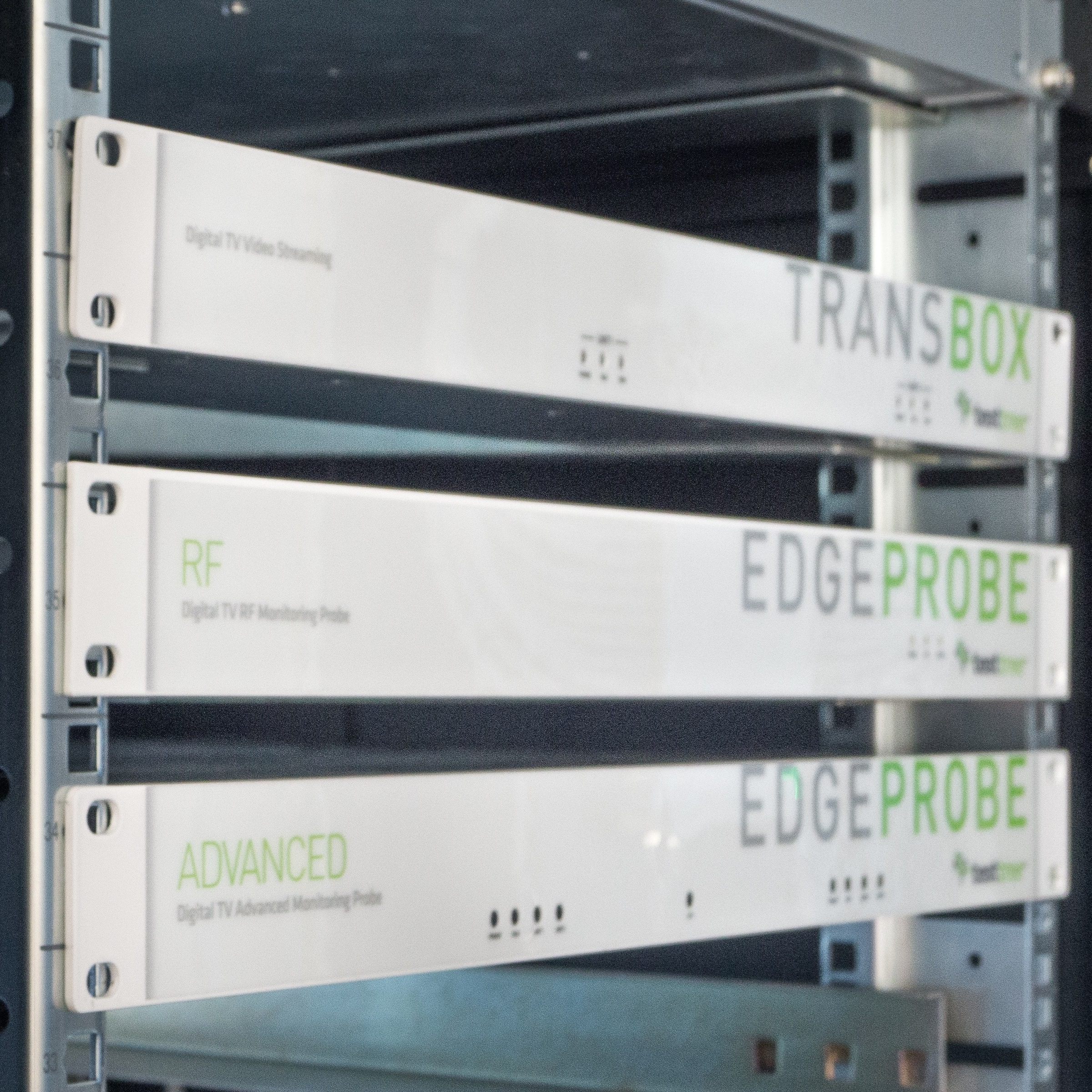

EdgeProbe Advanced MultiStandard

(1 customer review)

The ideal tool for accurate & cost-effective monitoring of the quality of Digital TV & Radio Broadcast Networks.

Combine any two RF standards in one 1RU device! Up to 4 parallel monitoring modules (2 per RF standard).

Category:

"*" indicates required fields

Applications

  • 24/7 Monitoring and Maintenance of both Head-End and TX sites (SFN, MFN, retransmission)
  • 24/7 Monitoring and Maintenance of both Uplink and Downlink sites (RF & Baseband)
  • Generation of Service Availability reports for Service Level Agreements
  • Gateway from RF to ASI or IP
  • Live transmission log, trend (RF measures) and TS recorder

Benefits

  • Monitor both Satellite distribution and TX RF transmission (terrestrial, cable, DAB) in a single 1RU device
  • Standalone, easy to use and configure, fast deployment, SNMP compatible
  • Increase customer satisfaction by detecting & preventing network degradations before your customers do
  • Reduce site maintenance cost by anticipating and identifying issues
  • Plan and improve the network configuration by identifying global trends
  • Remotely accessible, compatible with low bandwidth control networks (GPRS/3G)
  • Low power consumption 25W

The ideal tool for accurate & cost-effective monitoring probe for:

  • DTV terrestrial transmission (DVB-T/T2, ISDB-T/Tb)
  • DTV cable transmission (DVB-C/C2)
  • DTV distribution over satellite (DVB-S/S2, T2-MI, OneBeam, MPTS)
  • DTH uplink and reception (DVB-S/S2, MPTS)

Combine any two RF standards in one single 1RU device.

Combined with a Network Monitoring System or not, the EdgeProbe Advanced provides a powerful broadcast network alert & diagnosis tool allowing Digital TV & Radio network operators to monitor global trends and anticipate potential failures.
EdgeProbe Advanced is able to monitor the RF signal, through its RF inputs (up to 4 in 1RU), as well as the baseband transport before modulator, through its ASI and IP inputs.

Monitor DVB-T & DVB-T2 signals at TX output or reception areas, up to 2 RF inputs in 1RU

Signal Level, MER, SNR, BER

Modulation parameters, L1 signaling in DVB-T2, TPS in DVB-T

Channel Impulse Response

DVB-T, DVB-T2 (1.1.1, 1.2.1, 1.3.1) & T2 Lite support

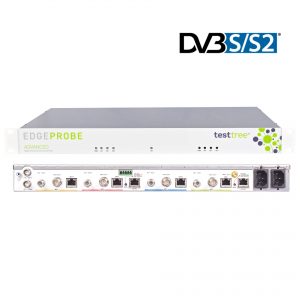

Monitor DVB-S & DVB-S2 (S2X) signals at uplink/downlink, up to 2 RF inputs in 1RU

Signal Level, CNR, Eb/N0, Link Margin, BER

Multistream support, modulation parameters

LNB powering & configuration

Frequency range (L-band after LNB down conversion): 950 to 2150 MHz

DVB-S, DVB-S2; C-band, Ku-band, Ka-band

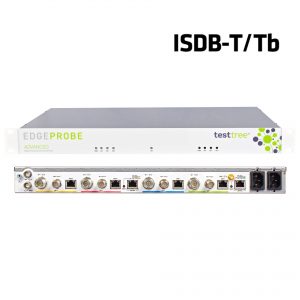

Monitor ISDB-T/Tb signals at TX output or reception areas, up to 2 RF inputs in 1RU

Signal Level, MER, SNR, BER per Layer A/B/C

Modulation parameters: TMCC, Layer A/B/C

Channel Impulse Response

Monitor DVB-C/C2 signals at TX output or reception areas, up to 2 RF inputs in 1RU

Signal Level, MER, BER

Modulation parameters, L1 part2 signaling in DVB-C2

Monitor RF signal SFN synchronisation

RF Frame Delay & Drift

Carrier Frequency Offset & Drift

Quick identification of which TX site is causing SFN issues!

Baseband monitoring and TS forward over ASI/IP output

Monitor TS & T2-MI & BTS baseband distribution links at Head-End output and TX site input through the ASI and IP inputs (up to 4 in 1RU)

Forward the demodulated analyzed TS over ASI or IP output (T2-MI PLP extraction support)

VLAN support on the IP Data link

Complete MPEG-2 TS Monitoring

ETSI TR 101 290 Priority 1, 2, 3

QoS indicators (optional): Service Availability Error & Service Degradation Error

Verify Regionalization: Service Plan view, PID/Service presence, Scrambling

Service & components bitrates

T2-MI, BTS & OneBeam Monitor

ETSI TR 101 290 T2-MI packet alarms

T2 L1 pre/post signaling

T2-MI PLP TS analysis and extraction support

BTS: IIP, TMCC packets monitoring

OneBeam: T2-MI marker and In-Band PID monitoring

32 GB of internal storage (up to 4 in 1RU)

Alarm logs up to 6 months

RF parameter trends up to 6 months

TS recording (manual trigger)

Internal GNSS receiver & Dual PSU - Hardware options

Internal GNSS: GPS & GLONASS support, for internal 1PPS reference signal generation

Dual Power Supply:  one additional Power Supply can be installed on the equipment in order to ensure the power redundancy

Compatible with all Network Monitoring Systems

Powerful network alert & diagnosis tool: monitor global trends and anticipate potential failures

Compatible SNMP v2c and v2c INFORM for alarming and device configuration

Web GUI access: support of low bandwidth Internet connection (3G, GPRS)

INTERFACES

  • RF
  • *

  • Connector In
  • Up to 4x RF inputs (N-type female – 50Ω or F-type female – 75 Ω) depending on RF standard

  • Standards (up to 2x per RU)
  • DVB-T/T2/T2 Lite

    DVB-S, DVB-S2

    ISDB-T/Tb

    DVB-C/C2

  • Frequency range
  • DVB-T/T2, DVB-C/C2, ISDB-T/Tb: 40 to 1000 MHz

    DVB-S/S2: 950 to 2150 MHz (after LNB down conversion)

  • Sensitivity (RF lock)
  • -80 to -5 dBm (28 to 104 dBµV)

  • Baseband TS
  • Up to 4x ASI/ETI in/out (BNC-type female – 75 Ω)

    Up to 4x Gigabit Ethernet for Data in/out (VLAN support)

  • GNSS & Time Reference
  • 1x GNSS antenna input (SMA-type – 50 Ω) (GPS/GLONASS) HW option, 3.3V antenna power up

    1x 1PPS input (BNC-type female – 50 Ω)

    1x 10MHz input (BNC-type female – 50 Ω)

PHYSICAL

  • Height: 45 mm / 1.7 in, Width: 440 mm / 17.3 in, Depth: 300 mm / 11.8 in
  • Format: 1 RU, width 19”, Power supply: 100-240 VAC +/-10%
  • Power consumption: 20W, Redundant Power Supply (HW option)

ENVIRONMENT

  • Operating temp.
  • -20 to 55°C / -4 to 131 °F

  • Storage temp.
  • -20 to 70°C / -4 to 158°F

  • Humidity
  • 0 to 95%, non condensing

MONITORING FEATURES

  • Please refer to the corresponding EdgeProbe Advanced product for standard specific features & technical details
  • DVB-T/T2: https://www.test-tree.com/product/dvb-tt2-monitoring-probe/
  • DVB-S/S2: https://www.test-tree.com/product/dvb-ss2-advanced-monitoring-probe/
  • ISDB-T/T2: https://www.test-tree.com/product/isdb-ttb-monitoring-probe/
  • DVB-C/C2: https://www.test-tree.com/product/dvb-cc2-monitoring-probe/

Hardware (1RU): 1PPS & 10MHz inputs

  • 2 DTV standards in 1RU: selected among DVB-T/T2, QAM DVB-C, DVB-S/S2, ISDB-T/Tb, ATSC 3.0/1.0
  • 2x Monitoring Unit per standard (RF in, ASI in/out, IP Data in/out, 32GB storage), 2x IP Control
  • 4x Monitoring Unit in total for 1RU

Software Packs

* Depending on applicable RF Standard: DVB-T/T2 & DVB-S/S2: T2-MI, OneBeam, ISDB-T: BTS
** ULTIMATE SW Pack for EdgeProbe Advanced only

Hardware Options

  • Internal GNSS receiver
  • Dual Power Supply
  • Tropicalization: Preserve the HW from corrosion – chassis & electronic component treatment for tropical and salty environment

Default Warranty

  • Standard: 1 YEAR Hardware Warranty and Basic Helpdesk (HW RMA)

Optional Support Services

  • Advance HW + SW 1/3/5 YEAR including:
    • Advance Replacement: hardware warranty with replacement before reception of faulty unit
    • Software Upgrade: access to all software updates & upgrades
    • Priority HelpDesk: priority access to the support helpdesk for any question on product usage, problem request, and change/improvement requests
  • Premium HW 1/3/5 YEAR including:
    • Premium Advance Replacement : hardware warranty with 1 business day replacement before reception of faulty unit (from a dedicated customer spare stock)
  • Premium SW 1/3/5 YEAR including:
    • Premium Software Support: SLA contract manager + guaranteed response time + 2 days per year local proactive visit (training including presentation of new available features, 1 TX site & or HE visit & configuration improvement, discussion on needs for new functionalities)
    • Software Upgrade: access to all software updates & upgrades
    • Priority HelpDesk: priority access to the support helpdesk for any question on product usage, problem request, and change/improvement requests

More details on the Warranties page.

Documents

Related products

comments

(1 Customer reviews)
  1. LUIZ RODRIGO OPENHEIMER

    GREAT EQUIPMENT

    We are testing the EDGE PROBE ADVANCED in Brazil for signal monitoring ISDB-TB.

    The product is excellent. In addition to tracking and enable alarms in all parameters of the ISDB-TB, still has the powerful tool of analysis of SFN, very important in the monitramento of broadcasting stations and GAP Fillers.

    If you need a complete solution for ISDB-TB, the EDGE PROBE ADVANCED is the one!
