ISDB-T/Tb Advanced Monitoring Probe

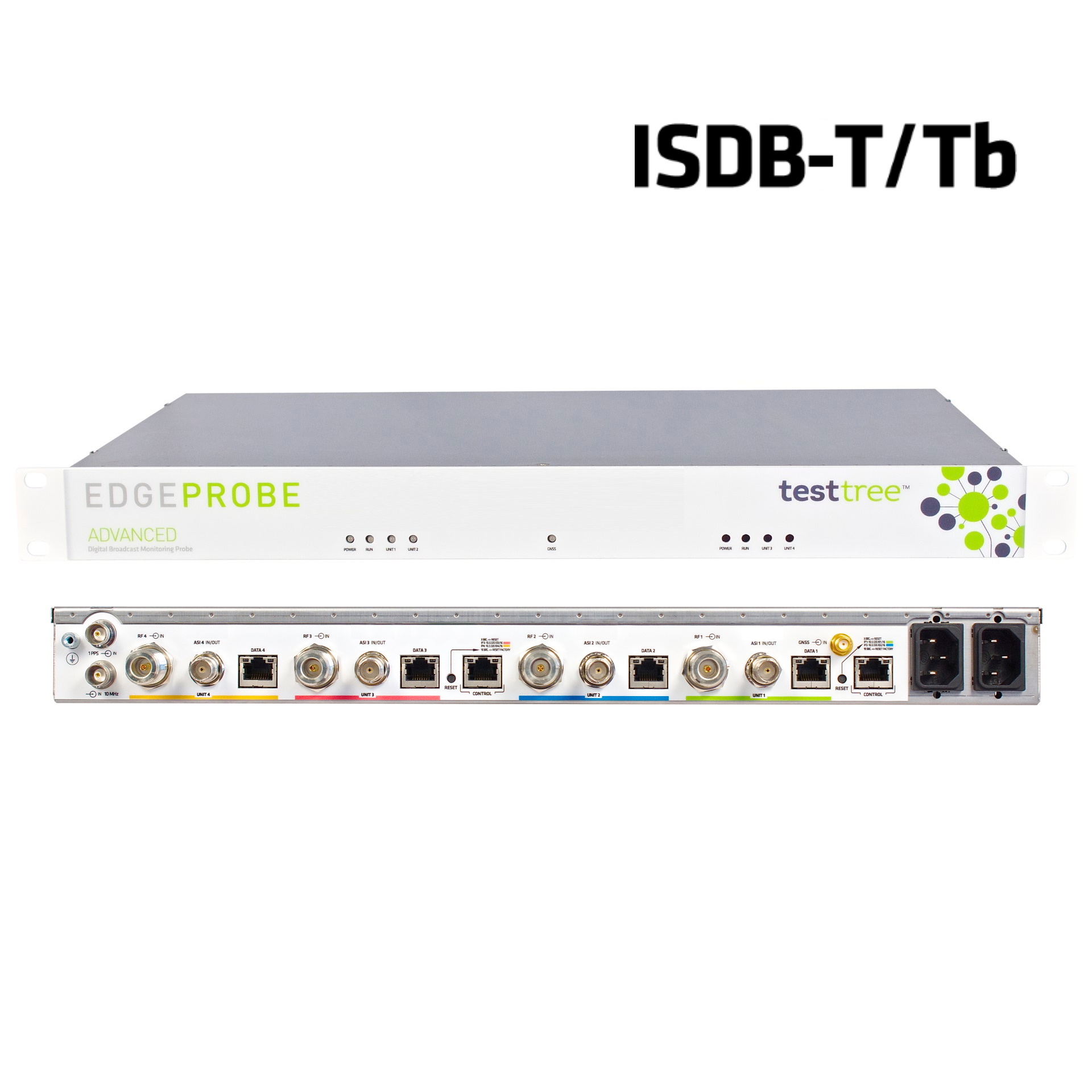

EdgeProbe Advanced ISDB-T/Tb

There are no reviews yet.

The ideal tool for accurate & cost-effective monitoring of the quality actually delivered to all points of ISDB-T and ISDB-Tb networks.

SKU: EdgeProbe Advanced ISDB-T/Tb Category:

EdgeProbe Advanced ISDB-T/Tb - Ask for Quote

Please fill in the following information and detail your monitoring needs. Also indicate if possible the software options you would be interested in.

Applications

  • 24/7 Monitoring and Maintenance of both Head-End and TX sites (SFN/MFN, RF/Baseband)
  • Generation of Service Availability reports for Service Level Agreements
  • Rebroadcasting receiver: RF to ASI or IP, with transcoding capacities
  • Live transmission recorder

Benefits

  • Standalone, easy to use and configure, fast deployment, SNMP compatible
  • Increase customer satisfaction by detecting & preventing DTV network degradations before your customers do
  • Reduce TX sites maintenance cost by anticipating and identifying issues
  • Plan and improve the network configuration by identifying global trends
  • Remotely accessible, compatible with low bandwidth control networks (GPRS/3G)
  • Low power consumption 20W

Combined with a Network Monitoring System or not, the EdgeProbe Advanced provides a powerful broadcast network alert & diagnosis tool allowing DTV network operators to monitor global trends and anticipate potential failures.
EdgeProbe Advanced is able to monitor ISDB-T and ISDB-Tb signals at transmitter outputs, through its RF inputs (up to 4 in 1RU), as well as at modulator input and at Head-End/distribution links, through its ASI and IP inputs.

Monitor ISDB-T & ISDB-Tb signals at TX output through the RF inputs (up to 4 in 1RU)

Signal Level, MER, SNR, BER per Layer A/B/C

Modulation parameters: TMCC, Layer A/B/C

Channel Impulse Response

Monitor RF signal SFN synchronisation

RF Frame Delay & Drift

Carrier Frequency Offset & Drift

Quick identification of which TX site is causing SFN issues!

Baseband monitoring and forwarding over ASI/IP interfaces

Monitor TS & BTS baseband distribution links at Head-End output and TX site input through the ASI and IP inputs (up to 4 in 1RU)

Forward the analyzed TS over ASI or IP output

VLAN support on the IP Data link

Complete TS Monitoring

ETSI TR 101 290 Priority 1, 2, 3

BTS monitor: IIP packet and TMCC alarms

QoS indicators (optional): Service Availability Error & Service Degradation Error

Verify Regionalization: Service Plan view, PID/Service presence, Scrambling

Service & components bitrates

Transcoding solution for confidence monitoring:

Coupled with a TRANSBOX device, EdgeProbe can provide service transcoding and forward to third-party analysis systems

Controlled by the EdgeProbe, the TRANSBOX performs:

– service extraction from the input TS (SPTS or MPTS)

– real-time audio/video transcoding: 1 to 10 Mbps output bitrate

– transcoded SPTS forward over IP Data

32 GB of internal storage (up to 4 in 1RU)

Alarm logs up to 6 months

RF parameter trends up to 6 months

TS recording (manual trigger)

Internal GNSS receiver (Hardware option)

Generates an internal 1PPS reference signal for SFN synchronization measurements (SFN Drift, Frequency Offset)

GPS & GLONASS support

Dual Power Supply (Hardware option):

additional Power Supply can be installed on the equipment in order to ensure the power redundancy

Remote connection

Compatible with all Network Monitoring Systems, providing a powerful network alert & diagnosis tool: monitor global trends and anticipate potential failures.

Compatible SNMP v2c and v2c INFORM for alarming and device configuration

Web GUI access: support of low bandwidth Internet connection (3G, GPRS)

INTERFACES

  • RF
  • *

  • Connector In
  • Up to 4x RF inputs (N-type female – 50 Ω)

  • Standard
  • ISDB-T/Tb

  • Frequency range
  • 40 to 1000 MHz

  • Sensitivity
  • -80 to -5 dBm

  • Channel bandwidth
  • 6, 7 & 8 MHz

  • Control
  • Up to 2x Gigabit Ethernet for Web GUI, SNMP-V2C

  • Transport Stream (TS)
  • Up to 4x ASI in/out (BNC-type female – 75 Ω)

  • *
  • Up to 4x Gigabit Ethernet for Data in/out (VLAN support)

  • GNSS & Time Reference
  • 1x GNSS antenna input (SMA-type – 50 Ω) (GPS/GLONASS) HW option, 3.3V antenna power up

  • *
  • 1x 1PPS input (BNC-type female – 50 Ω)

  • *
  • 1x 10MHz input (BNC-type female – 50 Ω)

MONITORING FEATURES

  • RF Monitor
  • *

  • Demodulation status
  • Lock / Unlock

  • Signal level
  • -90 to -5 dBm

  • MER
  • 0 to 40 dB

  • SNR
  • 0 to 40 dB

  • BER
  • Post-Viterbi, Post-RS per Layer A/B/C

  • Modulation parameters
  • TMCC, Layer A/B/C

  • Channel Impulse Response (CIR)
  • *

  • BTS
  • IIP, TMCC packets monitoring

  • SFN Synchronization
  • *

  • SFN Drift
  • Measured at RF level. Allows rapid identification of which TX site is causing SFN issues

  • Network Delay
  • Transmission time for the SFN signal

  • Frequency Offset & Drift
  • Measured at RF level

  • TS Monitor Base
  • ETSI TR 101 290 Priority 1 and 2

  • TS Monitor Advanced
  • ETSI TR 101 290 Priority 3, QoS (SAE/SDE)

  • Service Plan
  • Verify regional services, Service & PID bitrates, Scrambling, Service & PID presence

  • Scanning
  • Monitor sequentially multiple channel frequencies over 1 RF input

  • Extended Memory
  • Up to 4x 32 GB of internal storage for: Event logs up to 6 months, Trends up to 6 months, TS recording

  • TRANSBOX
  • Coupled with a TRANSBOX device, EdgeProbe can provide service transcoding and forward to third-party analysis systems: service extraction from the input TS (SPTS or MPTS), real-time audio/video transcoding: 1 to 10 Mbps output bitrate, transcoded SPTS forward over IP Data

PHYSICAL

  • Height: 45 mm / 1.7 in, Width: 440 mm / 17.3 in, Depth: 300 mm / 11.8 in
  • Format: 1 RU (19”), Power supply: 100-240 VAC ±10%
  • Power consumption: 20W, Redundant Power Supply (HW option)

EdgeProbe Advanced ISDB-T/Tb includes by default:

  • Hardware: 1 monitoring Unit 1x (RF in, ASI in/out, IP Data in/out) & 1x IP Control in 1 RU
  • Software:
    • ISDB-T/Tb RF monitor: RF parameters, SFN (RF Frame, Carrier frequency), Channel Impulse Response
    • BTS monitor
    • TS forward over ASI or IP outputs
    • VLAN support for IP Data link

Software Options

  • TS Base Monitor: ETR290 Priority 1, 2
  • TS Advanced Monitor: ETR290 Priority 3
  • Qos Monitor: SAE (Service Availability Error), SDE (Service Degradation Error)
  • Service Plan: Multiplex Service/PID monitoring
  • Extended Memory: 32 GB storage (trends, logs, TS record)
  • Dual ADV: 2 monitoring Units 2x (RF in, ASI in/out, IP Data in/out) & 1x IP Control in 1 RU
  • Scanning: Multiple RF/ASI/IP channels sequential monitoring

Hardware Options

  • Quad ADV: 4 monitoring Units 4x (RF in, ASI in/out, IP Data in/out) & 2x IP Control in 1 RU
  • Internal GNSS receiver
  • Dual Power Supply
  • TRANSBOX: Stream 1 or 2 compressed service(s)
  • Tropicalization: Preserve the HW from corrosion – chassis & electronic component treatment for tropical and salty environment



Default Warranty

  • Standard: 1 YEAR Hardware Warranty and Basic Helpdesk (HW RMA)

Optional Support Services

  • Advance HW + SW 1/3/5 YEAR including:
    • Advance Replacement: hardware warranty with replacement before reception of faulty unit
    • Software Upgrade: access to all software updates & upgrades
    • Priority HelpDesk: priority access to the support helpdesk for any question on product usage, problem request, and change/improvement requests
  • Premium HW 1/3/5 YEAR including:
    • Premium Advance Replacement : hardware warranty with 1 business day replacement before reception of faulty unit (from a dedicated customer spare stock)
  • Premium SW 1/3/5 YEAR including:
    • Premium Software Support: SLA contract manager + guaranteed response time + 2 days per year local proactive visit (training including presentation of new available features, 1 TX site & or HE visit & configuration improvement, discussion on needs for new functionalities)
    • Software Upgrade: access to all software updates & upgrades
    • Priority HelpDesk: priority access to the support helpdesk for any question on product usage, problem request, and change/improvement requests

More details on the Waranties page.
