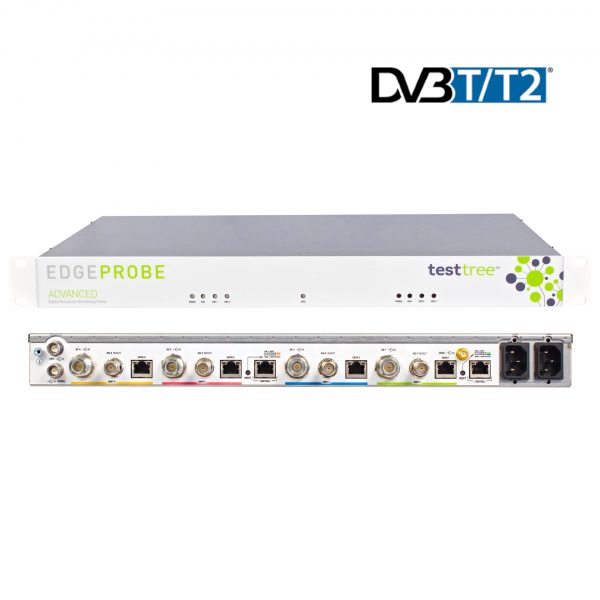

• EdgeProbe Advanced Quad front
  • EdgeProbe Advanced Quad back
  • EdgeProbe Advanced Dual front
  • EdgeProbe Advanced Dual back
  • Web GUI - Overwiew
  • Web GUI - Alarm Overview
  • Web GUI - Alarm Overview
  • Web GUI - Alarm Overview
  • Web GUI - Monitoring - Channel
  • Web GUI - Monitoring - Echoes
  • Web GUI - Monitoring - SFN
  • Web GUI - Monitoring - Carrier Frequency Drfit
  • Web GUI - Monitoring - Service Plan
  • Web GUI - Monitoring - Service Plan
  • Web GUI - Monitoring - OneBeam
  • Web GUI - Monitoring - Data Storage
  • Web GUI - Device - Memory Management
  • Web GUI - Monitoring - GNSS
  • Web GUI - Monitoring - Logs Events
  • Web GUI - Settings - Channel Management
  • Web GUI - Settings - Transcoding
  • Web GUI - Settings - Alarm Profiles - Multiplex
  • Web GUI - Settings - Alarm Profiles - T2-MI
  • Web GUI - Settings - Alarm Profiles - SFN - DVB-T2
  • Web GUI - Device - General
  • Web GUI - Settings - Alarm Profiles - SFN - DVB-T
  • Web GUI - Settings - Alarm Profiles - RF
  • Web GUI - About

DVB-T/T2 Advanced Monitoring Probe
EdgeProbe Advanced DVB-T/T2

(2 customer reviews)

The ideal tool for accurate & cost-effective monitoring of the quality actually delivered to all points of DVB-T and DVB-T2 networks.

SKU: EdgeProbe Advanced DVB-T/T2 Category:

EdgeProbe Advanced DVB-T/T2 - Ask for Quote

Please fill in the following information and indicate if possible the software options you would be interested in.
  • Default options:
  • Software options:
  • Hardware options:

Applications

  • 24/7 Monitoring and Maintenance of both Head-End and TX sites (SFN/MFN, RF/Baseband)
  • Generation of Service Availability reports for Service Level Agreements
  • Rebroadcasting receiver: RF to ASI or IP, with transcoding capacities
  • Live transmission recorder

Benefits

  • Standalone, easy to use and configure, fast deployment, SNMP compatible
  • Increase customer satisfaction by detecting & preventing DTV network degradations before your customers do
  • Reduce TX sites maintenance cost by anticipating and identifying issues
  • Plan and improve the network configuration by identifying global trends
  • Remotely accessible, compatible with low bandwidth control networks (GPRS/3G)
  • Low power consumption 20W

Combined with a Network Monitoring System or not, the EdgeProbe Advanced provides a powerful broadcast network alert & diagnosis tool allowing DTV network operators to monitor global trends and anticipate potential failures.
EdgeProbe Advanced is able to monitor DVB-T and DVB-T2 signals at transmitter output or OFF AIR, through its RF inputs (up to 4 in 1RU), as well as at modulator input and at Head-End/distribution links, through its ASI and IP inputs.

Accurate DVB-T/T2 RF signal quality monitor

Signal Level, MER, SNR, BER

Modulation parameters, L1 signaling in DVB-T2, TPS in DVB-T

RF Spectrum & Constellation display

DVB-T, DVB-T2 (1.1.1, 1.2.1, 1.3.1) & T2 Lite support

DVB-T2 Single/Multi-PLP reception support

Complete SFN synchronisation monitor

Transmission site SFN monitor: quick identification of which TX site is causing SFN issues!

  • RF Frame Delay & Drift
  • Carrier Frequency Offset & Drift
  • Before modulator: Network Delay of TS (MIP packet) or T2-MI streams

SFN overlapping Reception Area monitor: Channel Impulse Response (Echo Delay and Level alarming thresholds) – with TestTree’s Unique Echo Pattern monitor

TS monitor and forward over ASI/IP interfaces

Monitor TS & T2-MI baseband distribution links at Head-End output and TX site input through the ASI and IP inputs (up to 4 in 1RU)

Forward the analyzed TS/T2-MI over ASI or IP output

VLAN support on the IP Data link

Complete TS monitoring

ETSI TR 101 290 Priority 1, 2, 3

QoS indicators (optional): Service Availability Error & Service Degradation Error

Verify Regionalization: Service Plan view, PID/Service presence, Scrambling

Service & components bitrates

Complete T2-MI monitoring

Single/Multi-PLP support

ETSI TR 101 290 T2-MI packet

T2 L1 pre/post signaling

Network Delay

PLP extraction and TS PLP analysis

Transcoding solution for confidence monitoring

Coupled with an external TRANSBOX device, or as an embedded SW option, EdgeProbe can provide service streaming to third-party systems over low bandwidth links:

  • One Service extraction from the analyzed TS (SPTS or MPTS)
  • Real-time audio/video transcoding: compression down to 500 Kbps bitrate
  • Streaming of the transcoded Service as a SPTS

32 GB of internal storage (up to 4 in 1RU)

Alarm logs up to 6 months

RF parameter trends up to 6 months

TS/T2-MI recording (trigger: manual or automatic by SNMP)

Internal GNSS receiver (Hardware option)

Generates an internal 1PPS reference signal for SFN synchronization measurements (SFN Drift, Frequency Offset)

GPS & GLONASS support

Dual Power Supply (Hardware option)

Additional Power Supply can be installed on the equipment in order to ensure the power redundancy

INTERFACES

  • Control
  • Up to 2x Gigabit Ethernet for:

    HTTP Web GUI (management),

    SNMP v2/v2c/INFORM (alarm traps and OID command SET/GET),

    FTP (firmware update, log file download, profile update)

  • RF
  • .

  • Connector In
  • Up to 4x RF inputs (default F-type female 75 Ω, or optional N-type female 50 Ω)

  • Standards
  • DVB-T – ETSI EN 300 744

    DVB-T2 & T2 Lite – ETSI EN 302 755 v1.3.1, ETSI TS 102 831

    T2-MI – ETSI TS 102 773

  • Frequency range
  • 40 to 1000 MHz

  • Sensitivity
  • -80 to -5 dBm; RF lock down to -80dBm

  • TS/T2-MI
  • Up to 4x ASI in/out (BNC-type female – 75 Ω)

  • TS/T2-MI
  • Up to 4x Gigabit Ethernet for Data in/out (VLAN support)

  • GNSS & Time Reference
  • 1x GNSS antenna input (SMA-type – 50 Ω) (GPS/GLONASS) HW option, 3.3V antenna power up

    1x 1PPS input (BNC-type female – 50 Ω)

    1x 10MHz input (BNC-type female – 50 Ω)

MONITORING FEATURES

  • RF Monitor
  • Power – Signal Level, SNR, MER, BER

  • Demodulation status
  • Lock / Unlock

  • Signal Level
  • Measure from -90 to -5 dBm ±1 dBm, typically ±0.5 dBm, resolution 0.2 dBm

    In dBm or dBµV

  • MER
  • 0 to 40 dB (0 to 36 dB: ±1 dB, 36 to 40 dB: ±2 dB)

  • BER (DVB-T)
  • Pre/Post-Viterbi, Post-RS

  • BER (DVB-T2)
  • Pre/Post-LDPC, Post-BCH

  • .
  • RF Spectrum and Constellation display

  • Modulation parameters
  • L1 signaling in DVB-T2, TPS in DVB-T

  • SFN Monitor at RX site (SFN overlapping area)
  • Channel Impulse Response (CIR) monitoring in the SFN overlapping reception area: Echoes Delay and Power Level alarming masks

    With TestTree’s unique Echo Pattern monitor: more reliable echo in error identification even if the main (strongest) echo suffers changes!

  • SFN Monitor at TX site
  • Quick identification of which TX site is causing SFN issues !

    Time Synchronization: RF Frame Drift

    Frequency Synchronization: Carrier Frequency Offset

  • Distribution Network Delay
  • Delay for the TS (with MIP packet) / T2-MI stream between the Broadcast Gateway and the Remote Transmission Site. Measured before the modulator.

  • T2-MI Monitor
  • Single/Multi-PLP support

    ETSI TR 101 290 T2-MI packet, L1 pre/post signaling

    T2-MI Network Delay

    PLP extraction and TS PLP analysis (ETR 101 290)

  • OneBeam/Single Illumination Monitor
  • Specific PID from the DTH stream used to recover the T2-MI distribution on TX site

  • ETSI TR 101 290 Monitor
  • .

  • TS Base
  • MPEG-2 TS Monitor, ETSI TR 101 290 Priority 1 and 2

    TS (with MIP packet) Network Delay

  • TS Advanced
  • ETSI TR 101 290 Priority 3

  • QoS
  • SAE (Service Availability Error), SDE (Service Degradation Error)

  • Service Plan
  • Verify regional services, Service & PID bitrates, Scrambling, Service & PID presence

  • Scanning
  • Monitor sequentially multiple channel frequencies or PLPs, in a Round -Robin mode. Monitoring context (measurement alarms) are kept between successive rounds.

  • Extended Memory
  • Up to 4x 32 GB of internal storage: event logs up to 6 months, trends up to 6 months, analyzed TS/T2-MI recording

  • TRANSBOX
  • Coupled with a TRANSBOX device, or as an embedded SW option, EdgeProbe can provide service streaming to third-party systems over low bandwidth links: one Service extraction from the analyzed TS (SPTS or MPTS), real-time audio/video transcoding: compression down to 500 Kbps bitrate, streaming of the transcoded Service as a SPTS

PHYSICAL

  • Height: 45 mm / 1.7 in, Width: 440 mm / 17.3 in, Depth: 300 mm / 11.8 in
  • Format: 1 RU, width 19”, Power supply: 100-240 VAC +/-10%
  • Power consumption: from 25W, depending on the number of active Monitoring Units
  • Redundant Power Supply (HW option)

ENVIRONMENT

  • Operating temperature
  • -20 to 55°C / -4 to 131 °F

  • Storage temperature
  • -20 to 70°C / -4 to 158°F

  • Humidity
  • 0 to 95%, non condensing

EdgeProbe Advanced DVB-T/T2 includes by default:

  • Hardware: 1 monitoring Unit 1x (RF in, ASI in/out, IP Data in/out) & 1x IP Control in 1 RU
  • Software:
    • DVB-T/T2 RF monitor: RF parameters, SFN (RF Frame, Carrier frequency), Channel Impulse Response, RF Spectrum & Constellation display
    • TS forward over ASI or IP outputs
    • VLAN support for IP Data lin

Software Options

  • TS Base Monitor: ETR290 Priority 1, 2, TS (with MIP packet) Network Delay
  • TS Advanced Monitor: ETR290 Priority 3
  • Qos Monitor: SAE (Service Availability Error), SDE (Service Degradation Error)
  • T2-MI Monitor: ETR290 T2-MI parameters, T2-MI Network delay
  • Service Plan: Multiplex Service/PID monitoring
  • Extended Memory: 32 GB storage (trends, logs, TS record)
  • Dual ADV: 2 monitoring Units 2x (RF in, ASI in/out, IP Data in/out) & 1x IP Control in 1 RU
  • OneBeam/Single Illumination: T2-MI markers monitoring
  • Scanning: Multiple RF/ASI/IP channels sequential monitoring
  • Video Transcoding: streaming of one Service over low bandwidth network links

Hardware Options

  • Quad ADV: 4 monitoring Units 4x (RF in, ASI in/out, IP Data in/out) & 2x IP Control in 1 RU
  • Internal GNSS receiver
  • Dual Power Supply
  • TRANSBOX: Streaming of one or two compressed Service(s) over low bandwidth network links
  • Tropicalization: Preserve the HW from corrosion – chassis & electronic component treatment for tropical and salty environment



Default Warranty

  • Standard: 1 YEAR Hardware Warranty and Basic Helpdesk (HW RMA)

Optional Support Services

  • Advance HW + SW 1/3/5 YEAR including:
    • Advance Replacement: hardware warranty with replacement before reception of faulty unit
    • Software Upgrade: access to all software updates & upgrades
    • Priority HelpDesk: priority access to the support helpdesk for any question on product usage, problem request, and change/improvement requests
  • Premium HW 1/3/5 YEAR including:
    • Premium Advance Replacement : hardware warranty with 1 business day replacement before reception of faulty unit (from a dedicated customer spare stock)
  • Premium SW 1/3/5 YEAR including:
    • Premium Software Support: SLA contract manager + guaranteed response time + 2 days per year local proactive visit (training including presentation of new available features, 1 TX site & or HE visit & configuration improvement, discussion on needs for new functionalities)
    • Software Upgrade: access to all software updates & upgrades
    • Priority HelpDesk: priority access to the support helpdesk for any question on product usage, problem request, and change/improvement requests

More details on the Waranties page.
