DAB/DAB+ Advanced Monitoring Probe
EdgeProbe Advanced DAB/DAB+

There are no reviews yet.

The ideal tool for accurate & cost-effective monitoring of the quality actually delivered to all points of DAB/DAB+ networks.

SKU: EdgeProbe Advanced DAB/DAB+ Category:

EdgeProbe Advanced DAB/DAB+ - Ask for Quote

Please fill in the following information and indicate if possible the software options you would be interested in.
  • Default options:
  • Software options:
  • Hardware options:


  • 24/7 Monitoring and Maintenance of the SFN networks: TX transmission and SFN Overlapping Reception Areas
  • Generation of Service Availability reports for Service Level Agreements
  • Plan and improve the network configuration by identifying global trends


  • Standalone, easy to use and configure, fast deployment, SNMP compatible
  • Reduce TX sites maintenance cost by anticipating and identifying issues
  • Increase customer satisfaction by detecting & preventing network degradations before your customers do
  • Remotely accessible, compatible with low bandwidth control networks (GPRS/3G/4G)
  • Low power consumption 25W

Combined with a Network Monitoring System or not, the EdgeProbe Advanced provides a powerful broadcast network alert & diagnosis tool allowing Digital Radio network operators to monitor global trends and anticipate potential failures.

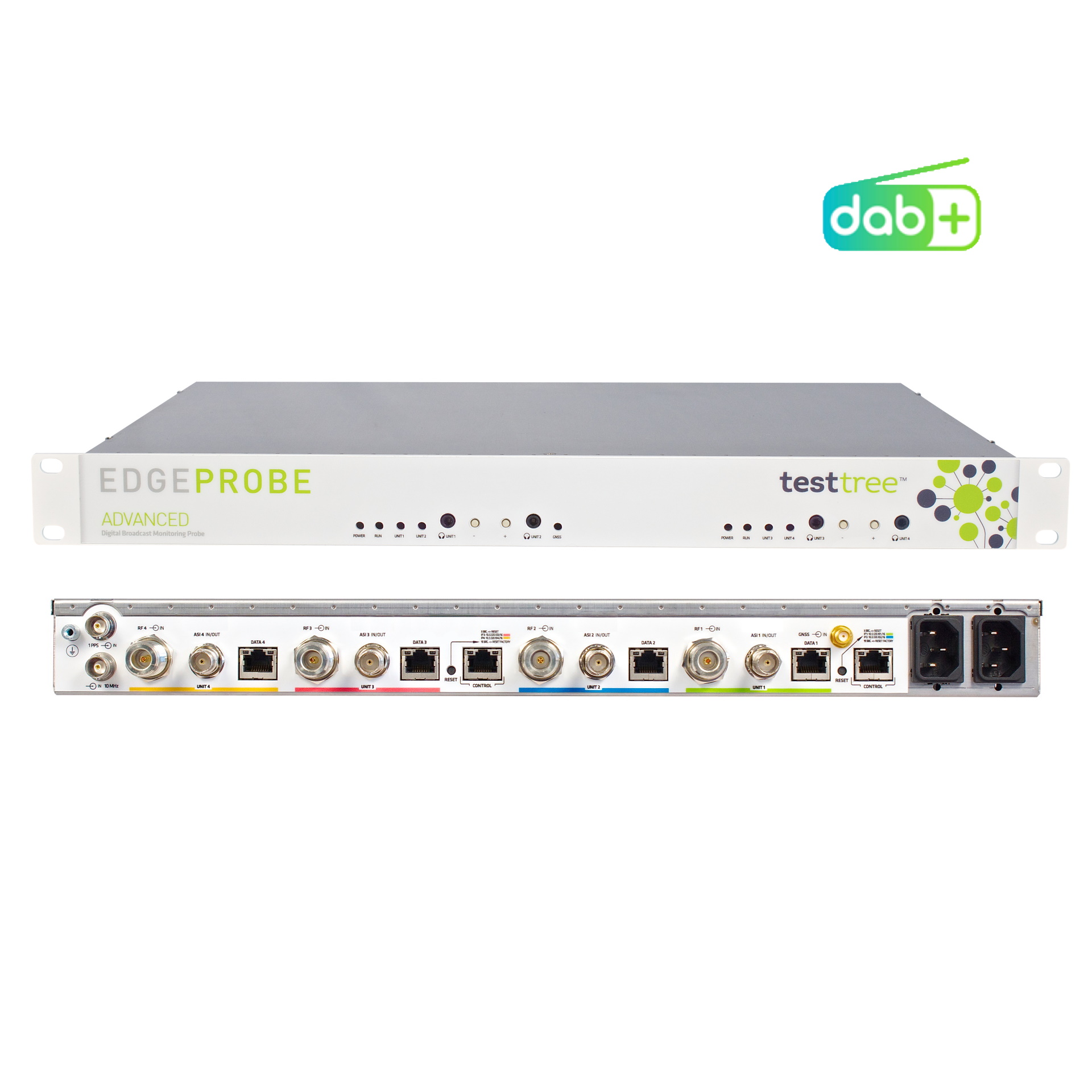

EdgeProbe Advanced is able to monitor DAB/DAB+ signals at transmitter outputs as well as in the reception areas, through its RF inputs (up to 4 in 1RU).

DAB/DAB+ monitoring through the RF inputs (up to 4 in 1RU)

Signal Level, MER, SNR, FIC BER, MSC BER (Pre/Post, per sub-channel)

Compatible Band III VHF (168 to 240 MHz)

Channel RF Spectrum and Constellation display

RF Shoulder Upper/Lower measurement

Mode I, II support; automatic detection

Local analog audio output: via front panel controls

SFN monitoring at TX or Reception area

On TX site:

  • RF signal time synchronization; detects up to +/- 1.2 seconds time drift

In Reception area (SFN overlapping area):

  • Channel Impulse Response (Echoes), with advanced Echo Pattern mode: better echo in error identification even if the main (stongest) echo suffers changes; no time shift if the main echo disappears
  • TII detection (Main/Sub ID)

DAB Transport monitoring

Ensemble Service Plan: check ensemble structure

Service information (SI)

32 GB of internal storage (up to 4 in 1RU)

Alarm logs & RF parameter trends up to 4 months

CSV format files. Available for download via web GUI or FTP connection (automation scripts)

Internal GNSS receiver (HW option)

Generates an internal 1PPS reference signal for SFN synchronization measurements – which is independent from the modulator’s reference signal

GPS & GLONASS support

Dual Power Supply (HW option)

One additional Power Supply can be installed on the equipment in order to ensure the power redundancy

* Contact us for availability


  • RF Connector In
  • Up to 4x RF inputs (default F-type female 75 Ω, or optional N-type female 50 Ω)

  • Standards
  • DAB/DAB+

  • Frequency range
  • 168 to 240 MHz

  • RF Sensitivity
  • -80 to -5 dBm; RF lock down to -80dBm

  • Baseband ETI (future use)
  • Up to 4x ETI (NI, G703)(NA, G704) in/out (BNC-type female 75 Ω)

  • Baseband EDI (future use)
  • Up to 4x Gigabit Ethernet for DATA in/out (VLAN support)

  • GNSS & Time Reference HW option
  • 1x GNSS antenna input (SMA-type 50 Ω) (GPS/GLONASS), 3.3V antenna power up

    1x 1PPS input (BNC-type female 50 Ω)

    1x 10MHz input (BNC-type female 50 Ω)

    Up to 4x analogue audio outputs (TRS 3.5mm) – front panel


  • RF Monitor
  • Demodulation status: Lock / Unlock

    Signal level: -100 to -5 dBm measure range, ± 1 dBm

    MER: 0 to 40 dB, ± 1 dB, 0.1 dB resolution

    SNR: 0 to 50 dB, ± 1 dB, 0.1 dB resolution

    FIC Pre-Viterbi BER

    MSC Pre/Post-Biterbi BER (per sub-channel)

    Channel RF Spectrum and Constellation display

    RF Shoulder Upper/Lower attenuation

  • Channel Impulse Response
  • CIR – Echoes: TII extraction (Main ID, Sub ID). Validation of the field reception quality.

    With TestTree’s unique Echo Pattern mode: better echo in error identification when the main (strongest) echo suffers changes; prevent time shift of all echoes when main echo disappers.

  • Synchronization Monitor
  • SFN Drift measured at RF level. Allows rapid identification of which TX site is causing SFN issues

  • Ensemble Service Plan
  • Check ensemble structure: service & component information

    Service presence detection*

    Service information (SI)

  • Scanning
  • Monitor sequentially (round-robin) multiple frequencies over 1 RF input. Monitoring status & context is kept between two sucessive monitoring rounds

  • Extended Memory
  • Up to 4x 32 GB of internal storage (per monitoring unit): alarmlogs & RF trends* up to 4 months. CSV format files. Available for download via web GUI or FTP connection


  • Height: 45 mm / 1.7 in, Width: 440 mm / 17.3 in, Depth: 300 mm / 11.8 in
  • Format: 1 RU, width 19”, Power supply: 100-240 VAC +/-10%
  • Power consumption: 25W, Redundant Power Supply (HW option)


  • Operating temp
  • -20 to 55°C / -4 to 131 °F

  • Storage temp
  • -20 to 70°C / -4 to 158°F

  • Humidity
  • 0 to 95%, non condensing

* Contact us for availability

EdgeProbe Advanced DAB/DAB+ includes by default:

  • Hardware:
    • 2 monitoring Unit 2x (RF in, ETI (NI, G703)(NA, G704) in/out, IP Data in/out) & 1x IP Control in 1 RU
    • 32 GB of internal storage for event logs and trends up to 6 months
  • Software:
    • Round-robin monitoring mode (Scanning)
    • Local analog audio output

Software Options

  • RF Monitor: RF parameters, SFN (RF Frame Drift), Channel Impulse Response (with TII extraction)
  • Transport & Ensemble Service Monitor:
    • FIC*, CU occupation*, sub-channel structure*, MSC BER*
    • Display & check ensemble structure, *SI, *PAD (DLS, MOT/SLS)
    • Audio* processing: silence detection, audio recording and streaming
  • ETI*/EDI* Monitor: ETI (NI, G703)(NA, G704)/EDI input support, ETI-LI analysis

Hardware Options

  • RF connector: N-type 50 Ω (by default HW is provided with F-type 75 Ω connector)
  • Quad ADV: 4 monitoring Units 4x (RF in, ETI-NI in/out, IP Data in/out) & 2x IP Control in 1 RU
  • Internal GNSS receiver
  • Dual Power Supply


Default Warranty

  • Standard: 1 YEAR Hardware Warranty and Basic Helpdesk (HW RMA)


Optional Support Services

  • Advance HW + SW 1/3/5 YEAR including:
    • Advance Replacement: hardware warranty with replacement before reception of faulty unit
    • Software Upgrade: access to all software updates & upgrades
    • Priority HelpDesk: priority access to the support helpdesk for any question on product usage, problem request, and change/improvement requests
  • Premium HW 1/3/5 YEAR including:
    • Premium Advance Replacement : hardware warranty with 1 business day replacement before reception of faulty unit (from a dedicated customer spare stock)
  • Premium SW 1/3/5 YEAR including:
    • Premium Software Support: SLA contract manager + guaranteed response time + 2 days per year local proactive visit (training including presentation of new available features, 1 TX site & or HE visit & configuration improvement, discussion on needs for new functionalities)
    • Software Upgrade: access to all software updates & upgrades
    • Priority HelpDesk: priority access to the support helpdesk for any question on product usage, problem request, and change/improvement requests

More details on the Waranties page.

* Contact us for availability
