RU ATSC 3.0/1.0 Advanced Monitoring Probe
EdgeProbe Advanced ATSC 3.0/1.0
The ideal tool for accurate & cost-effective monitoring of the quality actually delivered to all points of ATSC 3.0/1.0 networks.
Область применения
- 24/7 Monitoring and Maintenance of both Head-End and TX sites: RF transmission (SFN/MFN), STLTP distribution (over IP, Satellite)
- Generation of Service Availability reports for Service Level Agreements
- Plan and improve the network configuration by identifying global trends
- Live transmission recorder
Преимущества
- Standalone, easy to use and configure, fast deployment, SNMP compatible
- Reduce TX sites maintenance cost by anticipating and identifying issues
- Increase customer satisfaction by detecting & preventing DTV network degradations before your customers do
- Remotely accessible, compatible with low bandwidth control networks (GPRS/3G/4G)
- Low power consumption 25W
Combined with a NMS or TestTree’s GlobalViewer, the EdgeProbe Advanced provides a powerful broadcast network alert & diagnosis tool allowing DTV network operators to monitor global trends and anticipate potential failures.

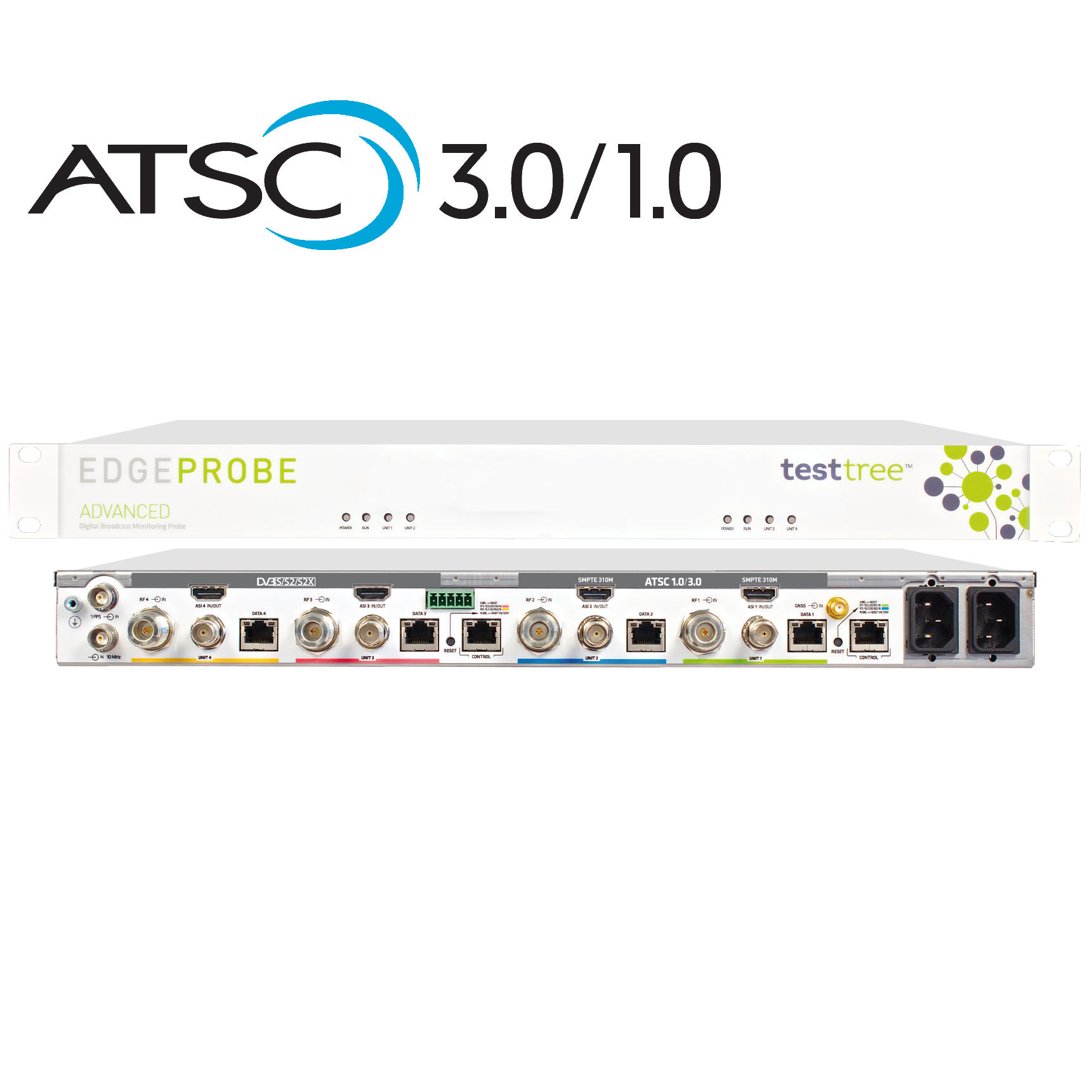

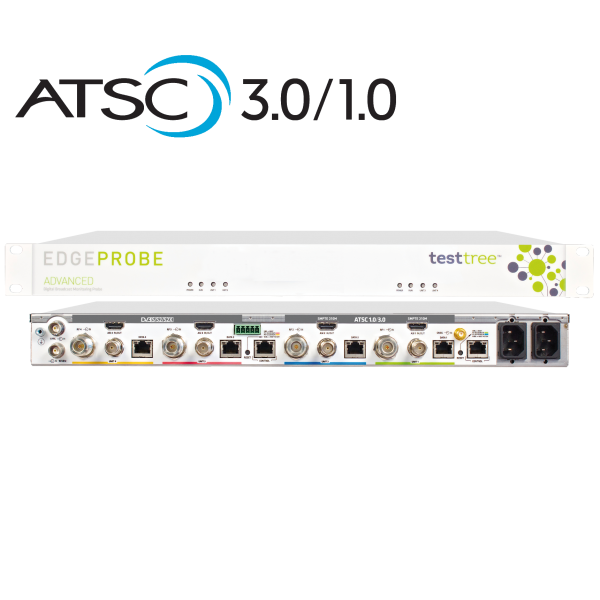

EdgeProbe Advanced is able to monitor ATSC 3.0/1.0 signals at Transmitter output through its RF inputs (up to 4 in 1RU), as well as at Modulator input and Head-End/distribution links through IP (STLTP) inputs.
Monitor ATSC 3.0/1.0 signals at TX output through the RF inputs (up to 4 in 1RU)
Signal Level, SNR, BER LDPC iteration
SFN time synchronization: SFN Drift
Channel Impulse Response (Echoes): TX ID decoding and echo association
Compatible ATSC 1.0
ATSC 1.0 TS monitoring
ETSI TR 101 290 priority 1, 2, 3
Multiplex Service structure: service/PID list, bitrate, scrambling/ PCR presence
32 GB of internal storage (up to 4 in 1RU)
Alarm logs & RF parameter trends* up to 4 months
CSV format files, available for download via web GUI or FTP connection (automation scripts)
Demodulated TS recording (*.ts) for ATSC 1.0
* Contact us for availability
INTERFACES
- RF Connector In
-
Up to 4x RF inputs (F-type female 75 Ω or N-type female 50 Ω)
- Standards
-
ATSC 3.0/1.0
- Frequency range
-
40 to 1000 MHz
- RF Sensitivity
-
-80 to -5 dBm
- BaseBand
-
Up to 4x Gigabit Ethernet for DATA in/out (VLAN support)
- *
-
Up to 4x SMPTE 310M in/out (BNC-type female 75 Ω)
MONITORING FEATURES
- RF Monitor
-
Demodulation status: Lock / Unlock
Signal level: -100 to -5 dBm
SNR: 0 to 50 dB
LDPC Iteration
- Channel Impulse Response
-
CIR — Echoes: Delay/Level alarm mask per echo, TX ID detection and echo association
- Synchronization Monitor
-
SFN Drift measured at RF level. Allows rapid identification of which TX site is causing SFN issues
- ATSC 1.0 Transport Stream
-
MPEG-2 TS Monitor, ETSI TR 101 290 Priority 1, 2, 3
- ATSC 1.0 Service Plan
-
Up to 4x 32 GB of internal storage (per monitoring unit): alarm logs, RF trends* up to 4 months. CSV format files. Available for download via web GUI or FTP connection. Demodulated TS recoding (*.ts) files.
- Scanning
- Extended Memory
-
Monitor sequentially (round-robin) multiple frequencies over 1 RF input. Monitoring status & context is kept between two successive monitoring rounds
PHYSICAL
- Height: 45 mm / 1.7 in, Width: 440 mm / 17.3 in, Depth: 300 mm / 11.8 in
- Format: 1 RU, width 19”, Power supply: 100-240 VAC +/-10%
ENVIRONMENT
- Operating temp
-
-20 to 55°C / -4 to 131 °F
- Storage temp
-
-20 to 70°C / -4 to 158°F
- Humidity
-
0 to 95%, non condensing
* Contact us for availability
